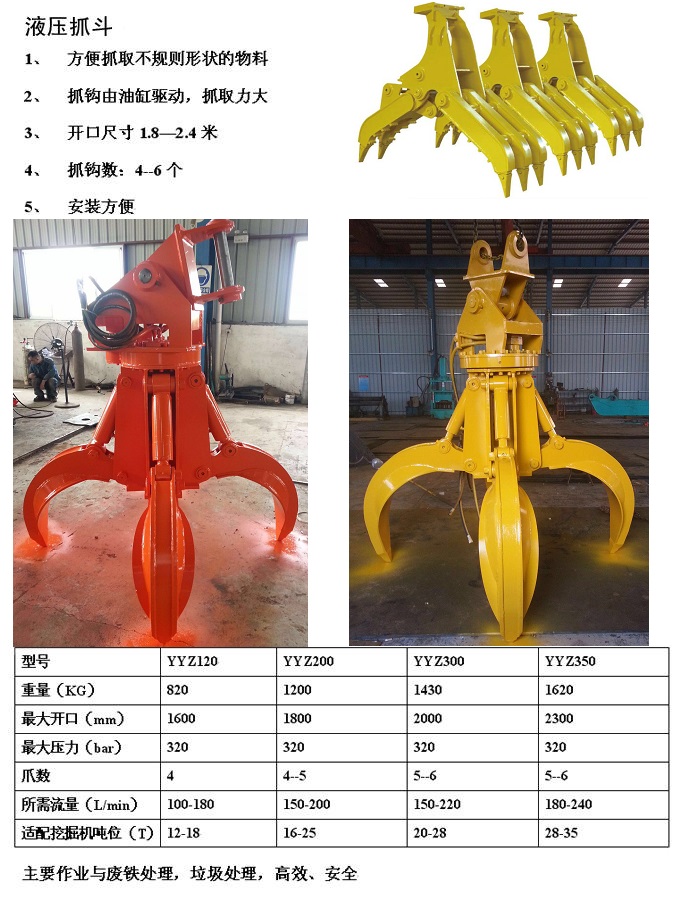

According to the needs of customers, the company designs two types of hydraulic steel grabbers: rotary and non-return: the non-hydraulic rotary grabber is connected by the oil circuit of the excavator bucket cylinder, and there is no need to add additional hydraulic pipes and Hydraulic valve, fast installation and use (this style product is convenient for many customers, and customers have high selectivity); the gripper with rotation needs to be controlled by adding a set of hydraulic valve block and pipeline to be used normally (this model The product can be adjusted in multiple angles according to the special requirements of the customer's construction operation, and the use is more ideal, higher and more efficient); the hydraulic cylinders equipped with the hydraulic steel grabber are equipped with protection devices.

Model configuration and reference:

6-10 tonnage excavator: configured with 4 claws, unloading weight is 5 00- 1000KG

11-16 tonnage excavator: configured with 4 claws, unloading weight is 8 00- 1500KG

17-22 tonnage excavator: configured with 4 claws, the unloading weight is 1000-2000KG

23-25 tonnage excavator: configured with 5 claws, the unloading weight is 1500-2500KG

26-30 tonnage excavator: configured with 5 claws, the unloading weight is 2000-3000KG

31-35 tonnage excavator: configured with 5 claws, the unloading weight is 2500-4000KG

36-40 tonnage excavator: configured with 5 claws, the unloading weight is 3000-5000KG

Main use: suitable for steel enterprises, ports, wharfs, railway ports, freight yards, etc., for the loading and unloading, stacking and transshipment of scrap steel, loose and broken materials, wood and other materials

Applicable excavator brands: Caterpillar CAT, Hitachi ZAX, Kobelco SK, Sumitomo SH, Volvo EC, Doosan DH, Hyundai R, Kato HD, Case CX, Liugong, Yuchai, Sany, Xuwa, Bangli, etc. machine series.
